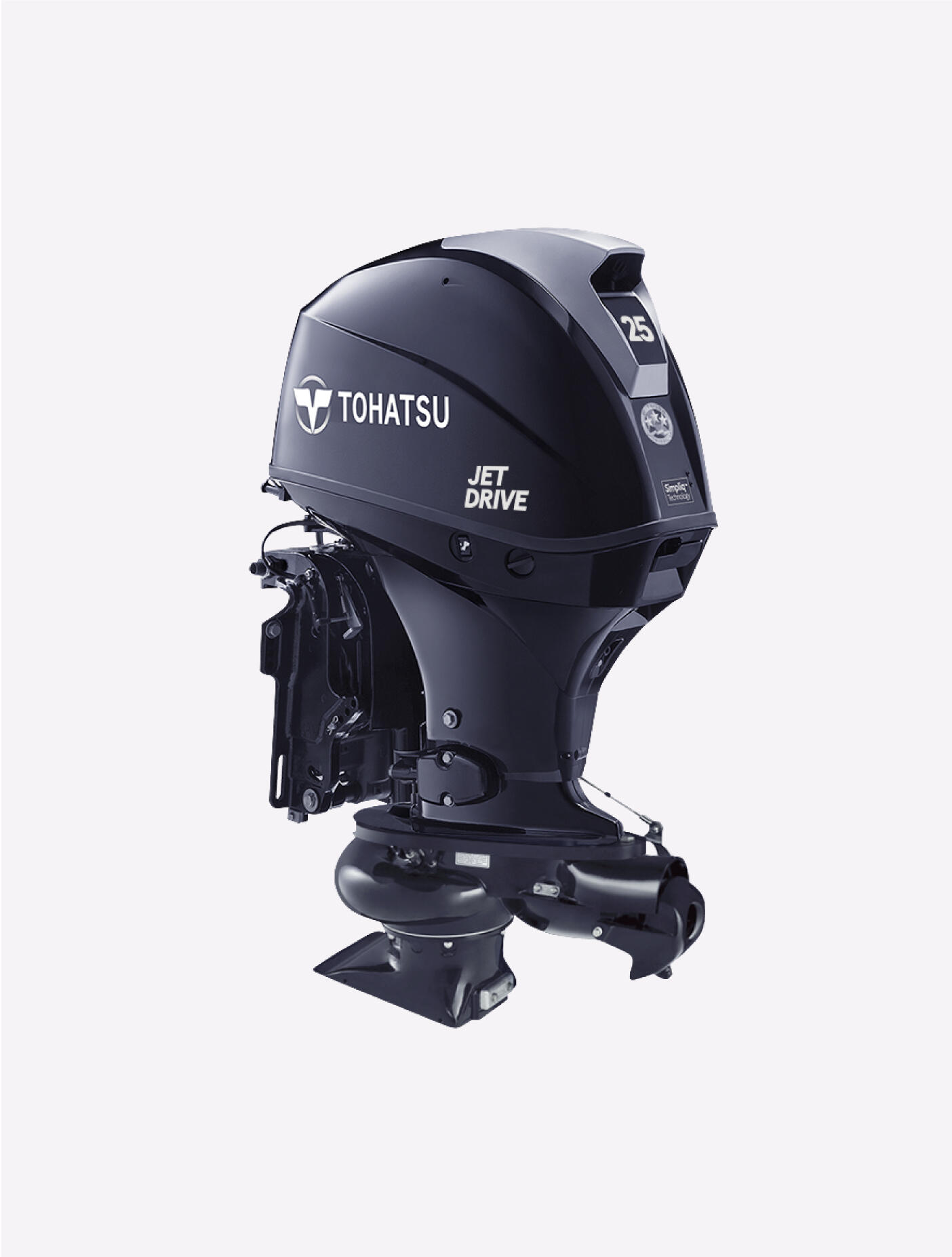

MFS25AJET
MID RANGE
Navigate through shallow waters with Tohatsu’s 25hp Jet Drive four stroke EFI. This outboard has been designed to allow you to open up a new world of hunting and fishing spots. With a jet-drive, you can explore waters that are difficult to reach with a propeller-driven outboard.
This new engine uses the power of our 40hp four stroke EFI and is also backed by a 5 year limited warranty. Make this rugged new outboard your partner on the water today and find your new favorite fishing spot tomorrow!
![](/marine/na/outboards/img/img_outboards_label_01.jpg)
![](/marine/na/outboards/img/img_outboards_label_02.jpg)
Tohatsu 25 hp JET 4-Stroke Benefits
- Outstanding fuel economy
- Ultra-low 3 star CARB emission approved
- 5 Year limited warranty
High Performance and Easy Operation
- Electronic Fuel Injection
- MicroComputer Programmed ignition system for quicker starts
- High output 21 amp alternator
- Power trim & tilt
Fundamentals for User Convenience and Reliability
- Built-in freshwater flushing system for easy routine flushing
- Variable idling speed control from 650 to 950 rpm’s
- A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
Warning & Protection
- Low oil pressure warning (visual and audible)
- Overheat warning (audible)
- Start-in-gear protection for safer engine starting
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Over-rev. limiter
FEATURES
![](https://www.tohatsu.com/marine/na/features/img/img-features-13.jpg)
Multi-Function Tiller Handle is available on select models.
The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.
![](https://www.tohatsu.com/marine/na/features/img/img-features-21.jpg)
Variable Idling System
allows trolling speed (RPM) to be adjusted in four levels from 650rpm to 950rpm (100rpm each) using the key-switch.
![](https://www.tohatsu.com/marine/na/features/img/img-features-26.jpg)
Built-in freshwater flushing system
Standard built-in freshwater flushing system simplifies routine engine flushing.
![](https://www.tohatsu.com/marine/na/features/img/img-features-27.jpg)
Audio Visual Warning System
The tachometer informs the operator of potential problems such as low oil pressure, low battery, and overheat, through the built-in warning lights. (For models equipped with a tachometer)
SPECIFICATIONS
Engine | 3 Cylinder |
---|---|
Output | Jet Pump 25 hp (18.4 kw) Horsepower 40 hp (29.5 kw) |
Displacement | 866 cc (52.9 cu.in.) |
Bore x Stroke | 70 x 75 mm (2.76 x 2.95 in) |
Max. RPM Range | 5,000 - 6,000 |
Starting | Electric |
Control Type | Remote or Tiller |
Gear Shift | Forward - Neutral - Reverse |
Gear Ratio | 1:1 |
Ignition System | MicroComputer Programmed |
Transom Height | 20" |
Fuel | Unleaded Gasoline (87 Octane) or higher |
Oil Type | NMMA Certified FC-W® 4-stroke oil** |
Oil Capacity | 0.63 gal. (2.4 L) w/filter |
Weight* | 234 lbs. (106 kg) |
Alternator Output | 12V, 252W, 21A |
Electronic Fuel Injection | Standard |
Start In Gear Protection | Standard |
Thermostat Controlled Cooling System | Standard |
Through-Jet Exhaust | Standard |
Overheat Buzzer | Standard |
Oil Pressure Warning | Standard |
Power Trim and Tilt | Standard |
Variable Idle Speed | Standard |
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
