OUTBOARDS
![](https://www.tohatsu.com/marine/int/outboards/img/mep6-int-R1.jpg)

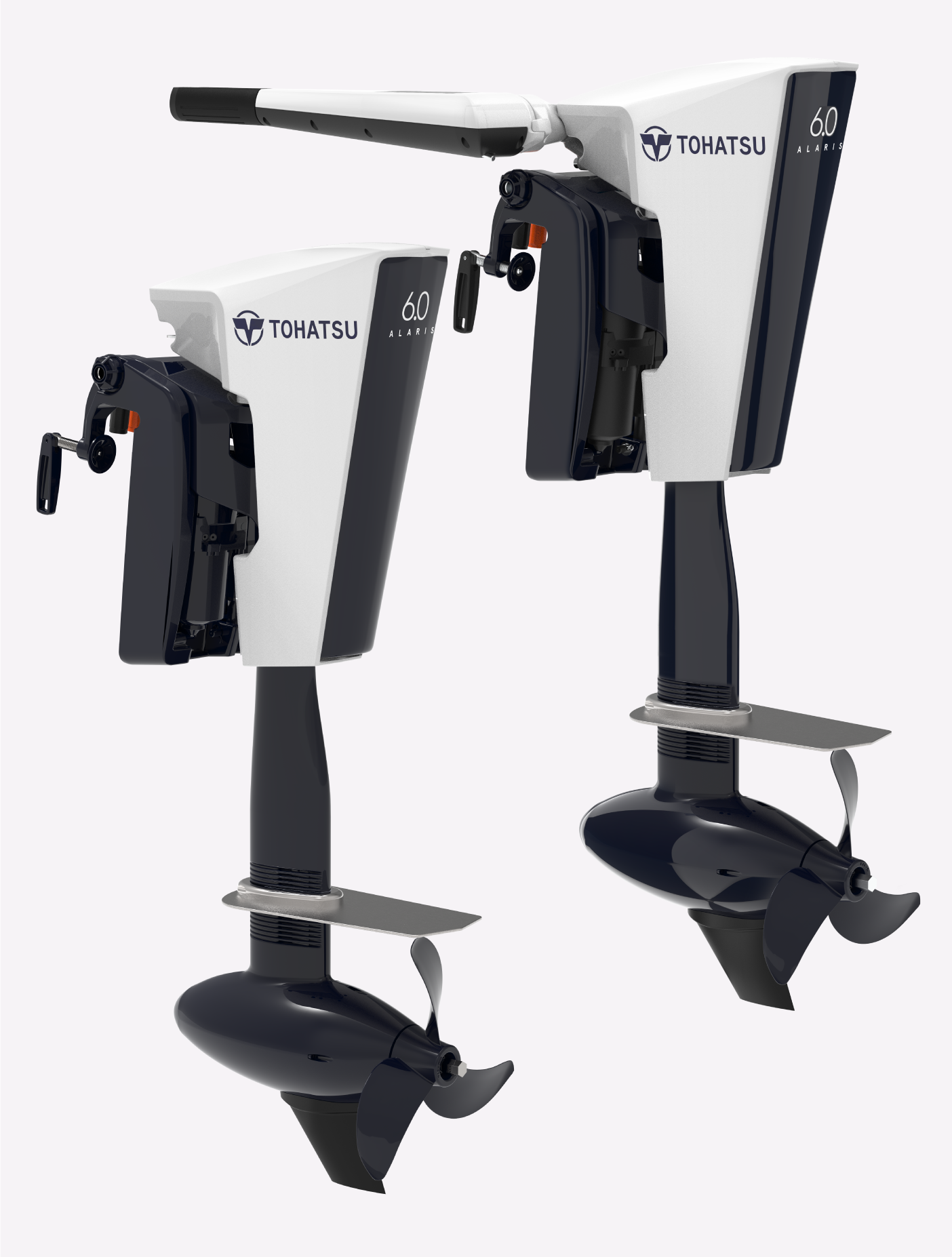

ALARIS™ 6.0
Available summer 2024
PORTABLE
Immerse yourself in the tranquility of nature, feel the rush of acceleration, and embrace a greener future. Welcome to that world with the all-new ALARIS™ 6.0kW electric outboard, the pinnacle of electric propulsion technology for watercraft enthusiasts. Unleash the power of the future technology today!
ALARIS™ 6.0kW Electric Propulsion Benefits
- Brushless DC Motor
- Built in GPS
- Passive cooling
- No exhaust fumes and emissions
- Smooth and quiet operation
- Available in short (15”), long (20”), ultra long (25”) transom height
High Performance and Easy Operation
- Integrated Power Tilt
- 3” touch screen control display with variety of functions such as, Integrated Pass Key, Diagnostics, Speed, Tilt position, Battery type, Battery level, multiple-language selection (English, Spanish, Dutch, French, German, Italian)
Fundamentals for User Convenience and Reliability
- Lithium, Lead-Acid or AGM Battery configuration
- Side and Top mounted control to fit wide range of boat and rigging options
- Less maintenance and enhanced longevity achieved by “passive cooling”
Warning & Protection
- Corrosion-preventive materials are selected for use in brackish water or saltwater
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Replaceable skeg
FEATURES
![](https://www.tohatsu.com/marine/int/features/img/Integrated%20power%20trim%20%26%20tilt.jpg)
Integrated power trim & tilt

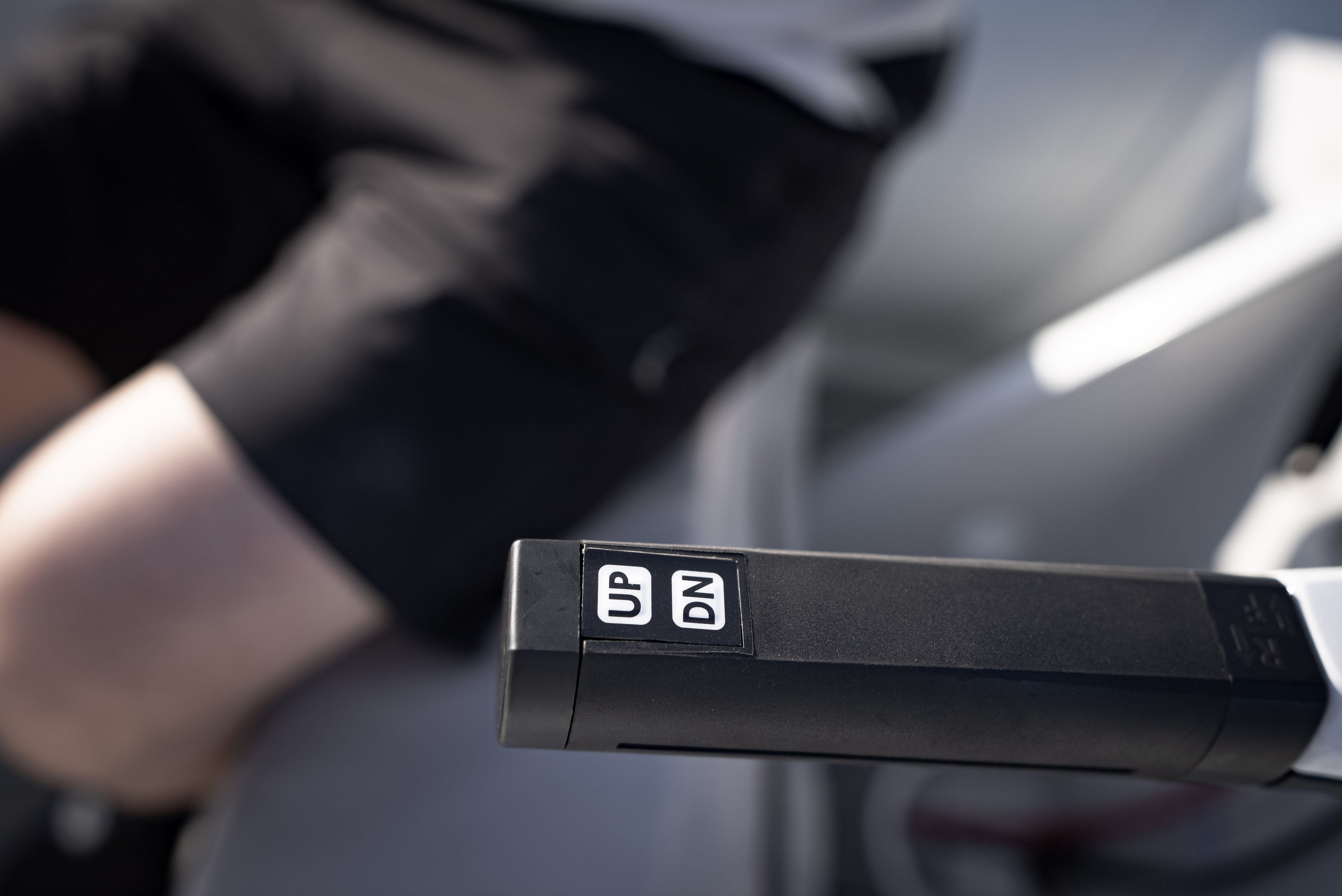

Incorporated Electric-Hydraulic Tilt comes standard. Trim buttons are located on the control box.
![](https://www.tohatsu.com/marine/int/features/img/PassiveCooling.png)
Passive cooling
Motor and heat sync are located underwater, resulting in passive cooling. Passive cooling does not require moving parts, resulting in less maintenance and enhanced longevity.
![](https://www.tohatsu.com/marine/int/features/img/4%20touch%20screen%20control%20display.jpg)

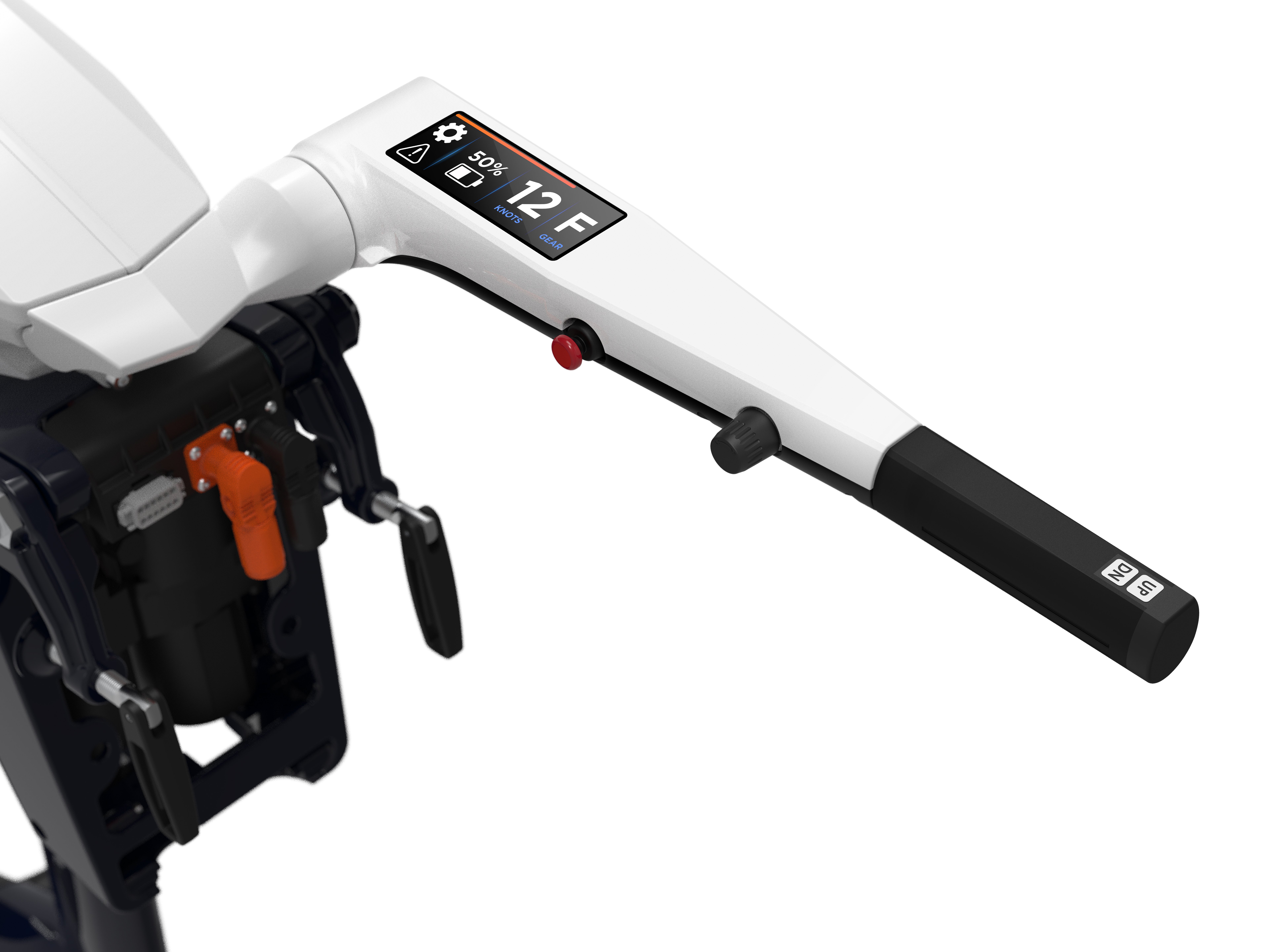

3" touch screen control display
・Integrated Pass Key ・Diagnostics ・Speed, Tilt and Trim ・Battery Type, Percentage ・Language Selection
![](https://www.tohatsu.com/marine/int/features/img/Flexible%20battery%20configurations.jpg)

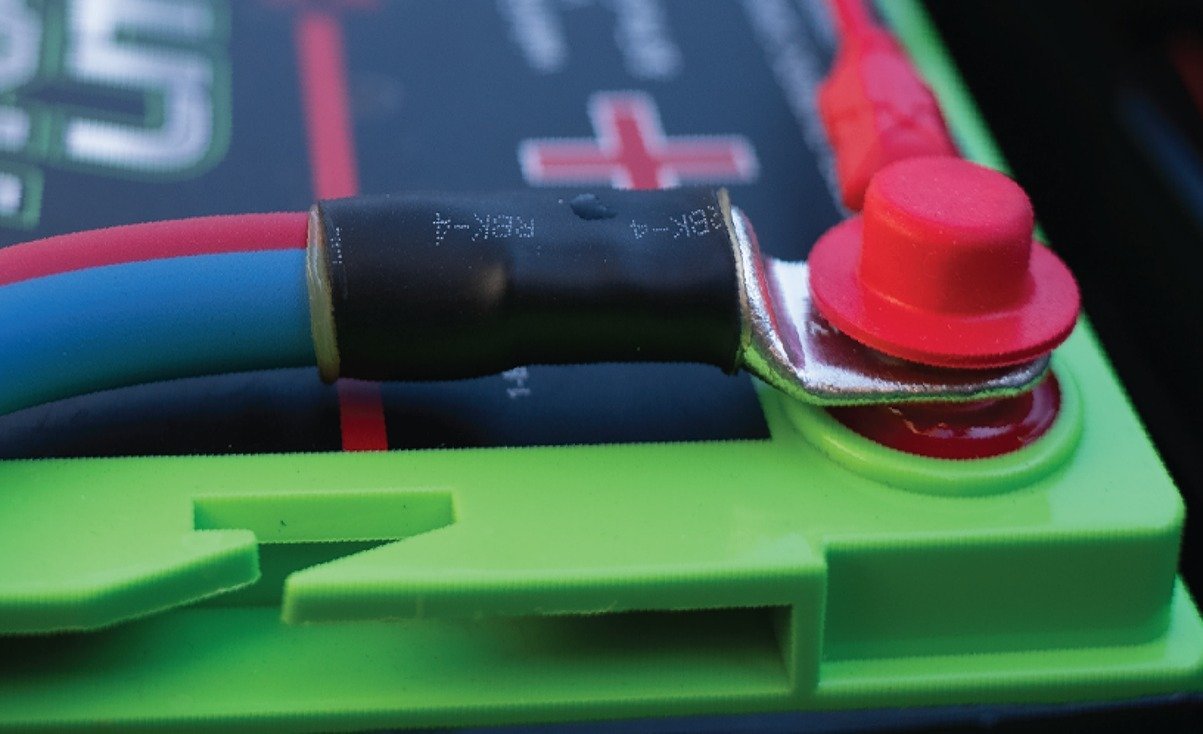

Flexible battery configurations
・48-60V ・Compatible with: - Lithium Ion - Lithium Iron Phosphate - AGM - Lead Acid *Power cable set with battery switch included
![](https://www.tohatsu.com/marine/int/features/img/built%20in%20GPS.png)
Bulit-in GPS
GPS is built in to the outboard and provides data to the Control Display, eliminating the need for a separate speedometer.
![](https://www.tohatsu.com/marine/int/features/img/Side%20and%20Top-Mount.jpg)
Side or Top mount controls
Available in both side and top-mount, the control box fits a wide range of boat and rigging options. Includes the Tohatsu standard safety lanyard.
SPECIFICATIONS
Input Power | 6.0kW | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Motor Type | Brushless DC Motor | ||||||||||
Motor Weight* | 32kg (70lbs) | ||||||||||
Max. RPM Range | 1300 | ||||||||||
Cooling | Passive | ||||||||||
Control Type | Remote Control | ||||||||||
Transom Height | 15", 20", 25" | ||||||||||
Propeller | Standard - 11" / Optional - 8" & 14" | ||||||||||
Power Trim and Tilt | Integrated | ||||||||||
Gauge | 3" touch screen control display | ||||||||||
Comparable Gas Outboard HP | 9.9ps | ||||||||||
Compatible Battery Types** | Lithium Ion, Lithium Iron Phosphate, AGM, Lead Acid | ||||||||||
Rated Voltage | 48-60V | ||||||||||
Battery runtime expectancy (theoretical value)*** |
|
**The ALARIS™ 6.0 is battery agnostic allowing you to select the battery type that best fits your boating needs and budget. See dealers for battery options.
***Battery runtime expectancy is calculated based on typical (4) 100Amp-Hour 48V nominal lead-acid battery configuration.
- Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
