Small & Compact

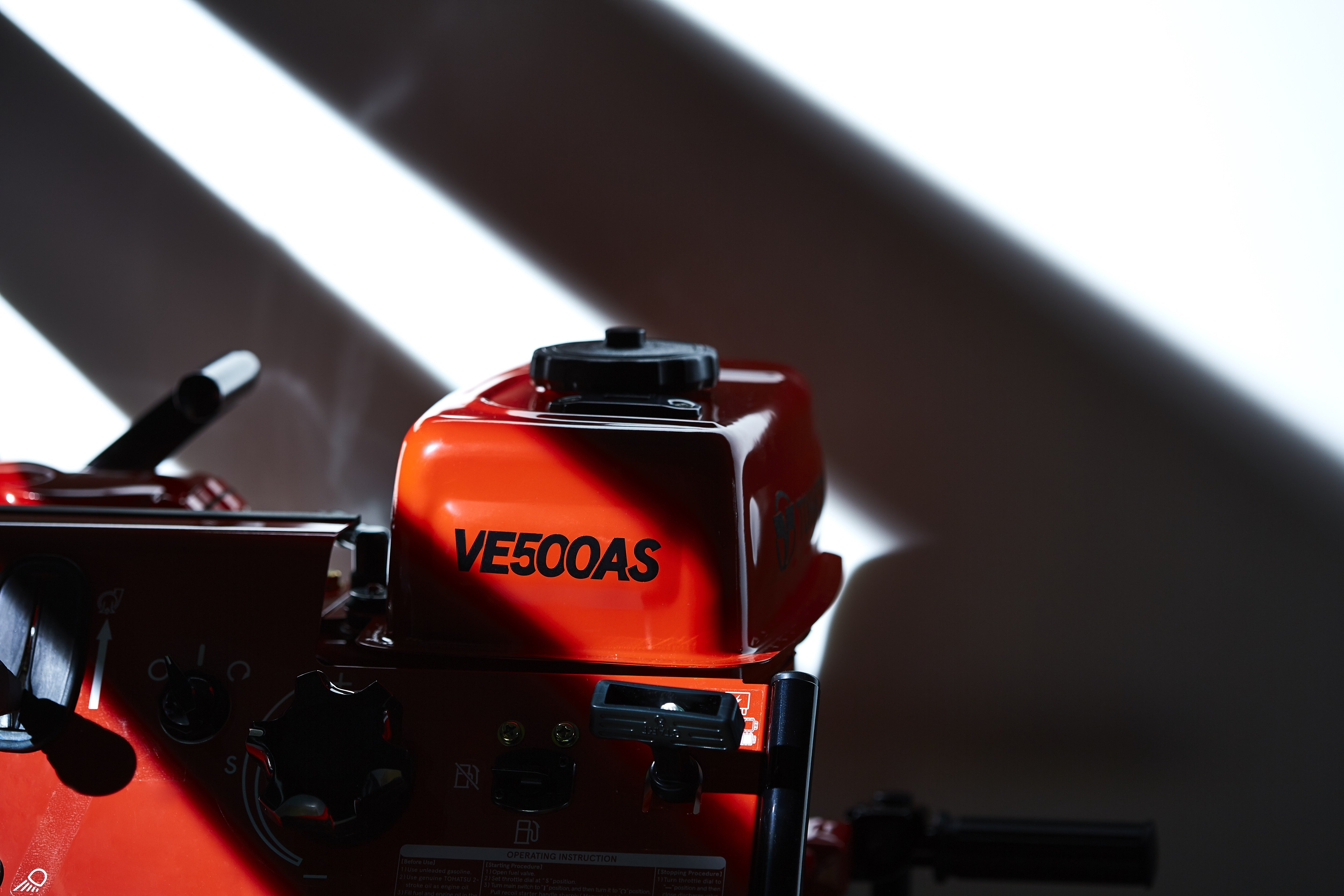

VE500AS

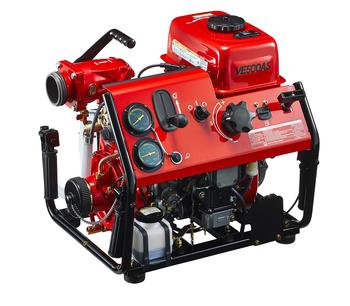

VE500AS

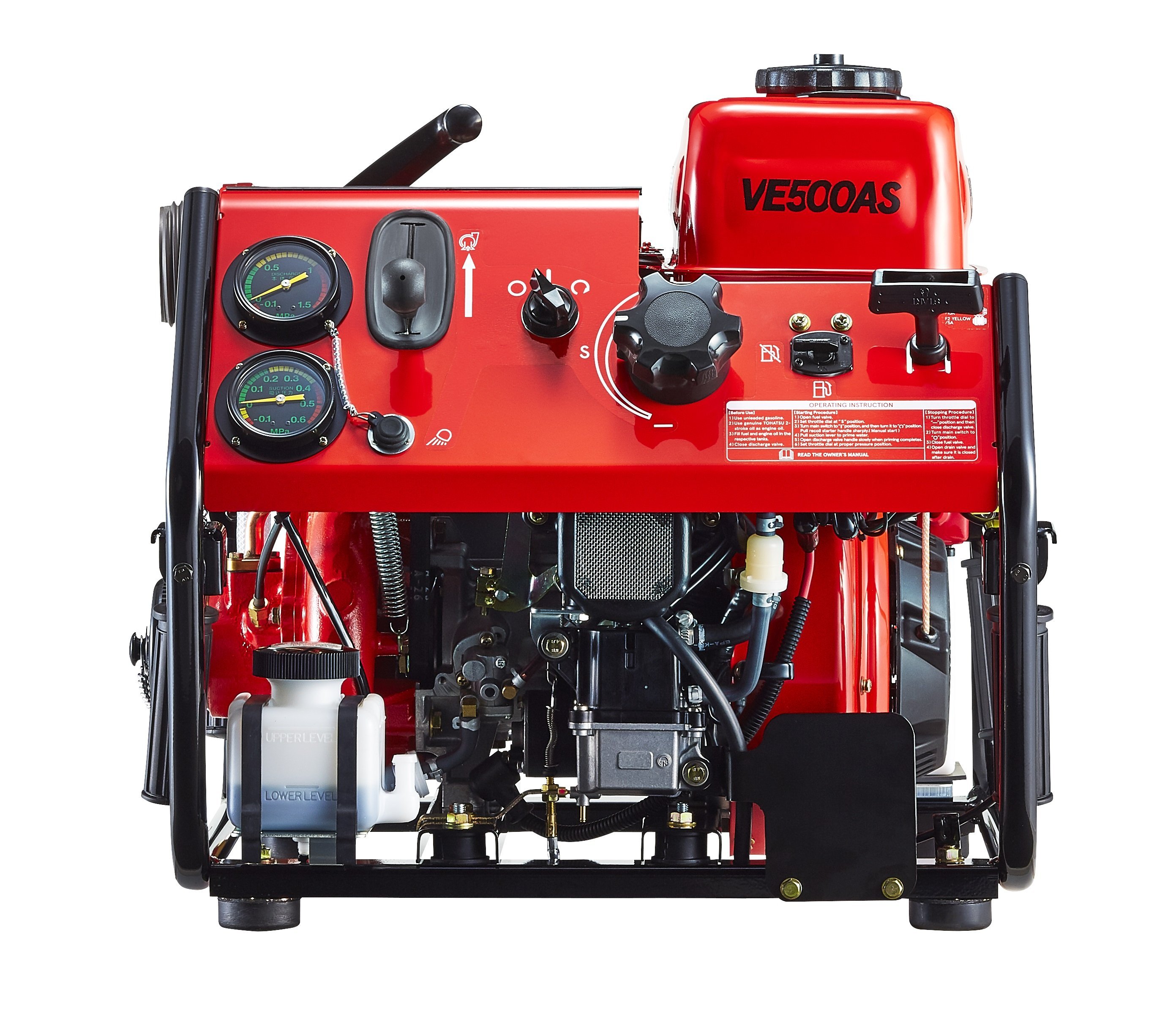

VE500AS

Small and compact with leading features

Engine 198mL Tohatsu 2-stroke, air-cooled gasoline engine Authorized output 8.6kW(11.7PS) Pump performance 525 liter /min. at 0.6MPa 250 liter /min. at 0.8MPa Priming Rotary vane vacuum pump Dry Weight 49kg

Features

Advanced engine technology for any tough environment

・Advanced engine technology for any tough environment

Newly adopted Electronic Fuel Injection System brings many benefits to an operator. Smoother and consistent transient throttle response, easier starting in cold conditions and highlands area, more accurate adjustment to account for extremes of ambient temperatures and changes in air pressure, more stable idling and no engine stalling, and no carburetor related issues.

・Special surface treatment to deliver a robust and durable equipment

The pump unit installed on this model are applied with special surface treatment. This treatment contributes to extending the purpose of use and prolonging the working life. It allows you to use this pump not only for fire fighting purposes but also for drainage purposes in a flooded area.

・Small and compact design philosophy

The dry weight of this model is less than 50kg, and it's the lightest weight in its class(Electronic Fuel Injection Type). In order to improve usability, we install 4 storable carry handles on the frame. They allow you to carry anywhere.

Specifications

Specification VE500AS
Engine Type 2 stroke
Number of Cylinder 1
Cooling System Air cooled
Bore x Stroke 66 x 58 mm (2.6 x 2.28 inch)
Piston displacement 198 mL (12.0 cu in)
Output 11.7 PS (8.6 kW)
Fuel Type Unleaded Gasoline (Min. 87 Octane)
Fuel Tank Capacity 5.95 Lit (1.57 gal)
Fuel Consumption 5.4 Lit / Hr (1.42gal)
Fuel System Electronic Fuel Injection
Oil Tank Capacity 0.5 Lit (0.13 gal)
Starting Electric and manual
Suction Suction System 4 Blade Rotary-vane vacuum pump (Oil less-type)
Priming System Manual
Pump Pump Type High pressure turbine pump
Suction Thread and Dia. NH 2-1/2" (65mm)
-
Discharge Thread and Dia. NH 2-1/2" (65mm)
-
Discharge Number Single
Discharge Valve Ball
Weight Dry Weight 49 kg (108.0 Ibs)
Wet Weight 55 kg (121.2 Ibs)
Dimension(mm) Overall
Length x Width x Height
575 x 475 x 537 mm
Remote Control Panel
*optional
Number of Panel (Maximum) -
Length of cable for panel -
