・Light weight and compact
Engine and pump castings are made of anti-corrosive aluminum-alloy to reduce weight and prolong working life. Compact unit in its class fits existing locker space, also can be carried by 2 firemen.
Simplify and maximize the ability for quick response.
Engine and pump castings are made of anti-corrosive aluminum-alloy to reduce weight and prolong working life. Compact unit in its class fits existing locker space, also can be carried by 2 firemen.
Both engine and pump are designed and developed specifically for fire pumps by Tohatsu, ensuring higher pump performance for its class.
Quick priming is provided by operating Rotary Vane Vacuum Pump. Prime 3 meters in 6 seconds.

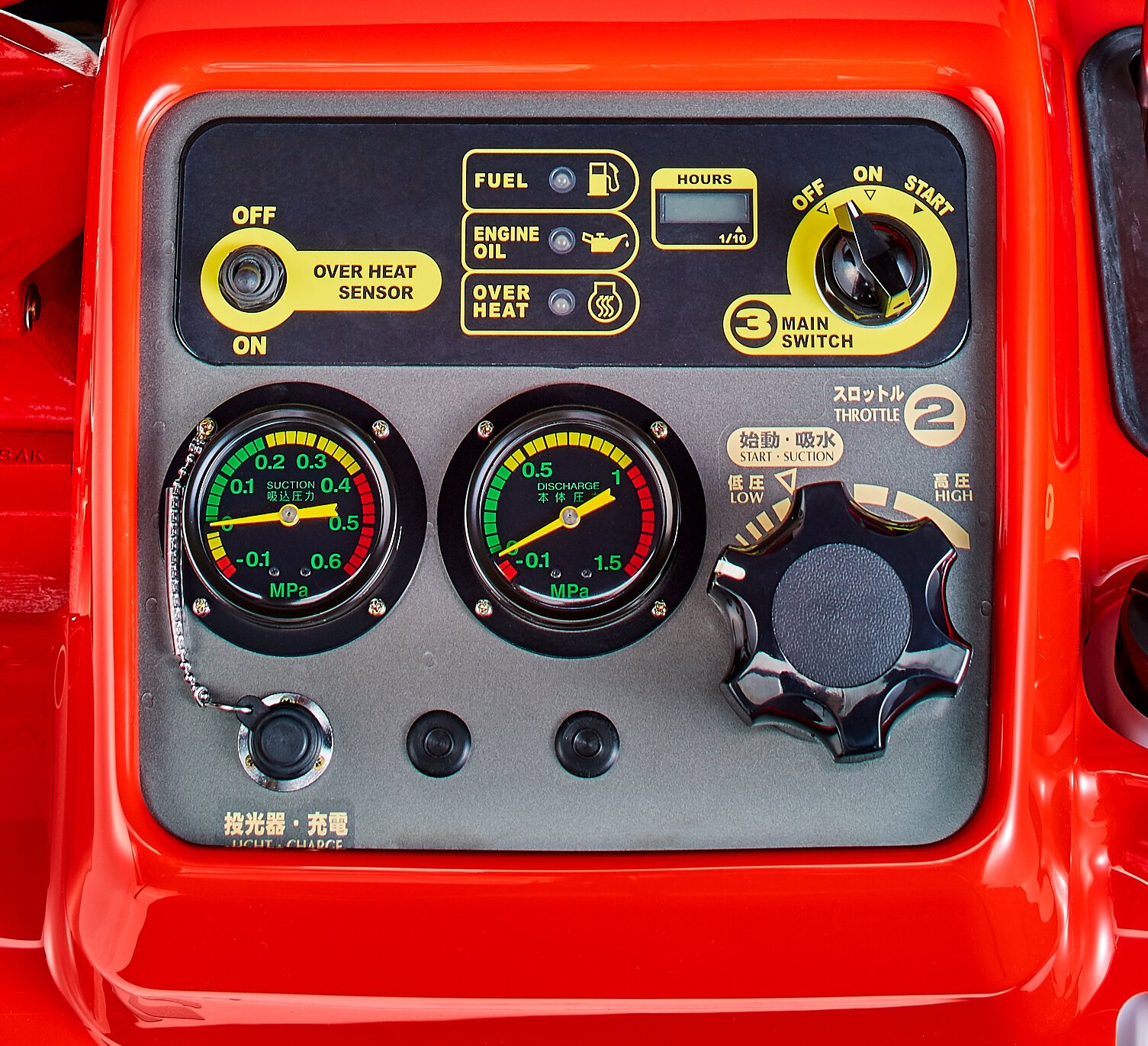

All gauges, throttle dial, control switches, and other warning lamps are grouped on the control panel for easy operation.
Overheat protection is provided on this model to safeguard the engine from cooling water loss, and to protect engine when water is not discharging. This device stops the engine automatically when engine temperature reaches 80℃. Reset switch is provided to release the sensor after it stops the engine.
Specification | VC72AS | |
---|---|---|
Engine | Type | 2-stroke |
Number of Cylinder | 2 Cylinder | |
Cooling System | Suction Water Cooled | |
Bore x Stroke | 76 x 68 mm (2.99 x 2.68 inch) | |
Piston displacement | 617 mL (37.6 cu in) | |
Output | 30 kW (40.8 PS) | |
Fuel Type | Unleaded Gasoline (Min. 87 Octane) | |
Fuel Tank Capacity | 18 Lit (4.76 gal) | |
Fuel Consumption | 13 Lit / Hr (3.43 gal / Hr) | |
Fuel System | Single Carburetor with Auto Choke | |
Oil Tank Capacity | 1.6 Lit (0.42 gal) | |
Starting | Electric and manual | |
Suction | Suction System | 4 Blade Rotary-vane vaccum pump (Oilless-type) |
Priming System | Manual | |
Pump | Pump Type | Single Suction, Single Stage centrifugal pump |
Suction Thread and Dia. | NH 4" (100mm) | |
- | ||
Discharge Thread and Dia. | NH 2-1/2" (65mm) | |
- | ||
Discharge Number | Single | |
Discharge Valve | Flat | |
Weight | Dry Weight | 85 kg (187.39 lbs) |
Wet Weight | 101 kg (222.66 lbs) | |
Dimension(mm) | Overall Length x Width x Height |
700 x 620 x 730 |
Remote Control Panel *optional |
Number of Panel (Maximum) | - |
Length of cable for panel | - |
