GAUGES

A variety of Tohatsu gauges are available through your local dealer; hour meters, volt meters, water pressure meters, speedometers, tilt/trim gauges, and tachometers. All manufactured to Tohatsu's precision standards. Listed below is just a sample of gauges offered. See your dealer for a complete list of all Tohatsu gauges available for your outboard.

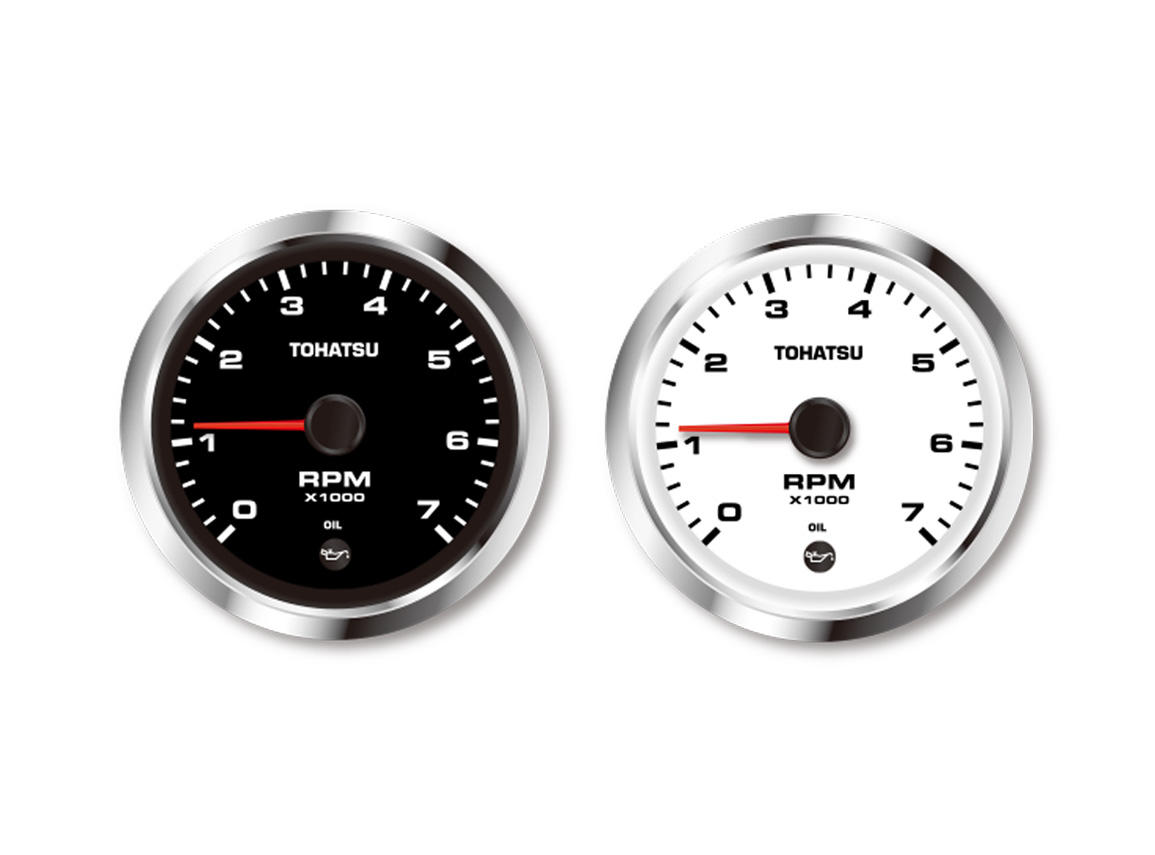

Tachometer - MFS 4-Stroke & TLDI Models

These 7,000 RPM tachometers (4" diameter) have a chrome bezel, are back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating. "TLDI" tachometer includes 3 warning lights (oil, temperature, battery). "MFS" 4-Stroke tachometer includes low oil warning light.

Part Number Description Applicable Models
3AC726400M Tachometer - Black face 4-Stroke Models: 8hp ~ 30hp (all) & 40/50hp Tiller ("F") Models
TLDI : Tiller ("F") Models
2-Stroke Models: 40/50/60/70/90 hp w/ Oil Injection systems
3AD726400M Tachometer - White face 4-Stroke Models: 8hp ~ 30hp (all) & 40/50hp Tiller ("F") Models
TLDI : Tiller ("F") Models
2-Stroke Models: 40/50/60/70/90 hp w/ Oil Injection systems
3GF726471M Tachometer - Black face 4-Stroke 40/50hp Remote ("P") Models
TLDI Remote ("P") Models
3GL726470M Tachometer - White face 4-Stroke 40/50hp Remote ("P") Models
TLDI Remote ("P") Models

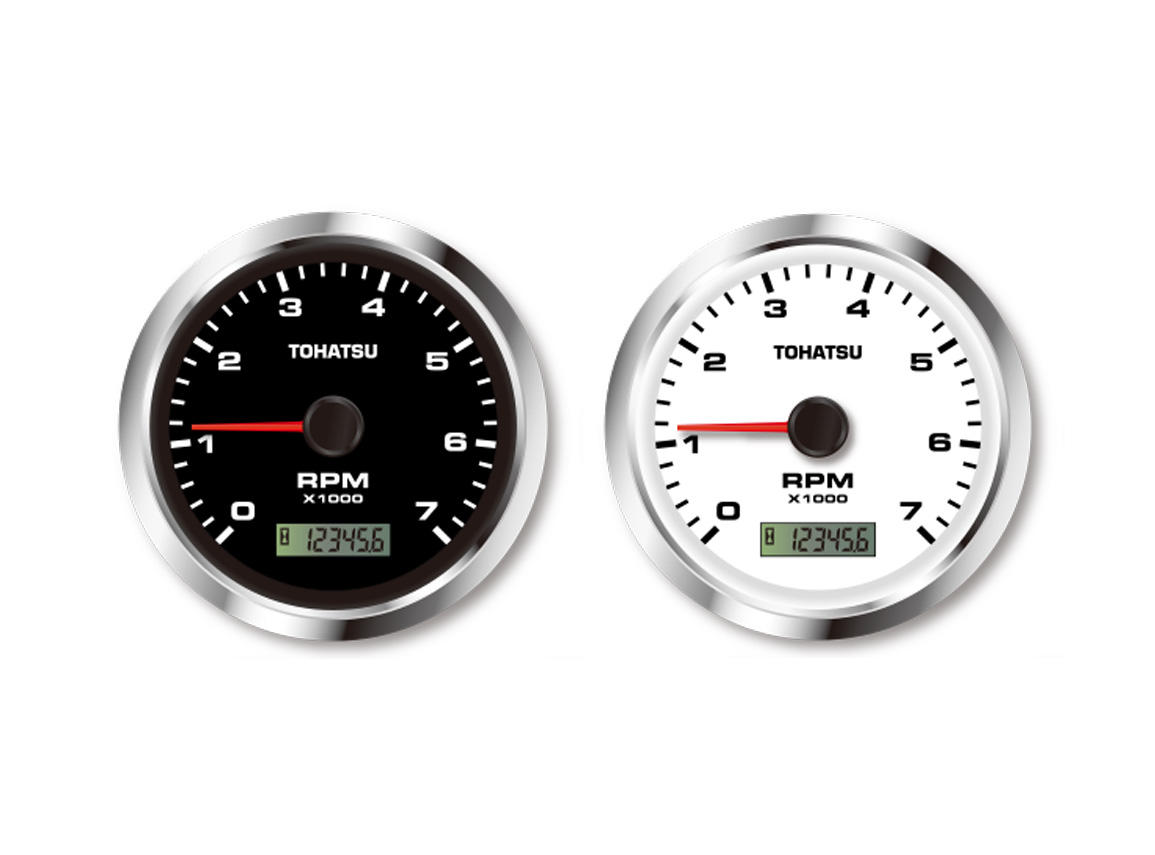

Tachometer - BFT Models

These 7,000 RPM tachometers (4" diameter) have a chrome bezel, are back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating. Includes a built-in digital Hour Meter to automatically track engine hours. A great feature to make it easy to keep up with maintenance intervals

Part Number Description Applicable Models
3PV726370M Tachometer with digital Hour Meter
Black face
BFT 4-Stroke Models
For new installations, gauge requires Meter Lead Wire Harness : Part #
3PU725370M
3PU726370M Tachometer with digital Hour Meter
White face
BFT 4-Stroke Models
For new installations, gauge requires Meter Lead Wire Harness : Part # 3PU725370M

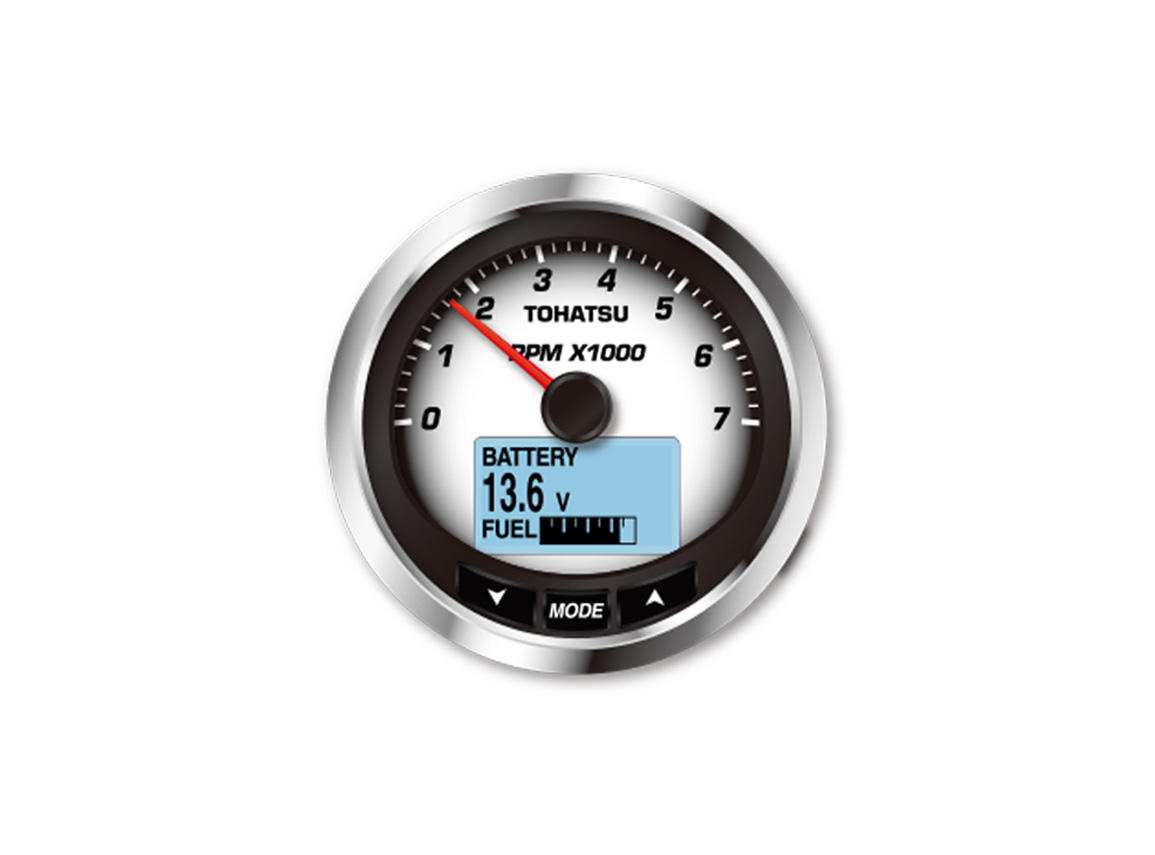

Multi-Function Tachometer
Tohatsu Onboard Communication System (TOCS)

The TOCS Digital Tachometer features large lighted buttons, chrome bezel, fog and scratch resistant coating , plug & play connectors and is LED back-lit for easy viewing at night/dusk. A user-friendly, intuitive design makes the menu easy to navigate. The TOCS multi-function tachometer connects to the CAN bus and communicates directly with the engine’s ECU. Engine data, fault codes and alarms are displayed on the LCD display (TLDI & MFS models only) and are visible even in direct sunlight.
Fits a standard 3.375 inch (85mm) instrument dash hole which makes this tachometer the perfect drop-in replacement for your current tachometer.
In addition to showing the outboard’s RPM’s the gauge also features:

  • Tilt/Trim Gauge (optional harness needed for MFS/TLDI models, part number 3KY725730M)
  • Engine Operating Temperature
  • Engine Overheat Warning
  • Engine Battery Voltage
  • Low Battery Voltage Warning
  • Over Rev. Warning
  • Engine Safety Governor Mode Warning
  • Fuel Flow Rate (Gallons Per Hour)
  • Multiple Fuel Tank Levels
  • Total Engine Hours
  • Lanyard Not Installed Warning (not available on TLDI)
  • Low Oil Pressure Warning (TLDI displays Low Oil Level Warning)
  • Oil Change/Scheduled Maintenance Notice (not available on TLDI)
  • Charging System Indicator Warning (BFT models only)
  • Water-In-Fuel Warning (BFT models only)
Part Number Description Applicable Models
3KY726370M Tachometer - TOCS MFS 25hp~50hp : Serial numbers ending in AE or higher
MD 40hp~115hp TLDI : Serial numbers ending in AE or higher
All BFT Models

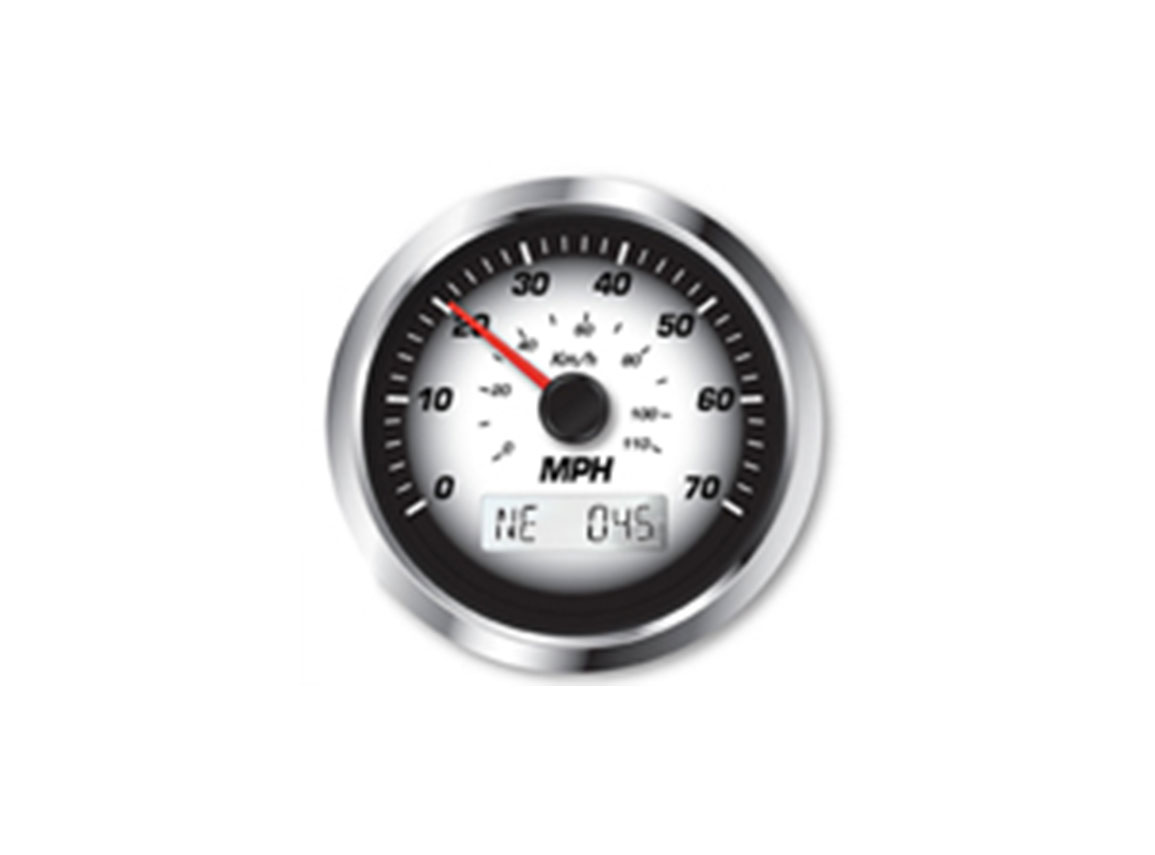

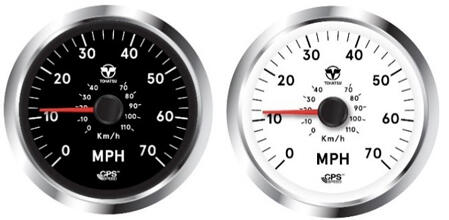

GPS Enabled Speedometer - 70mph

No external antenna required; GPS information is gathered from an internal GPS antenna. Fits a standard 3.375 inch (85mm) instrument dash hole which makes this GPS Speedometer the perfect drop-in replacement for your current speedometer. Uses a highly accurate 48 channel GPS receiver to provide speed accuracy to within 1 mph.
Features:

  • 4 inch diameter for easy viewing in all conditions
  • No external GPS antenna required!
  • Premium LED back-lit dial
  • Chrome bezel & fog/scratch resistant domed lens
  • LCD displays Compass Heading and Actual Heading (Course Over Ground heading)
  • Ultra fast satellite acquisition time; 1 second from Hot Start
  • Speed accuracy of +/- 1 MPH
  • Heading accuracy of +/- 1 Degree
  • Ideal replacement for speed sensing devices, such as pitot tube and paddle wheel, that fail over time
  • Perfect for slow moving vessels where pitot tubes just don't work
  • Deutsch style weatherproof connectors
  • Harness & installation instructions included
Part Number Description Applicable Models
99998F41014 Speedometer - GPS Enabled All Models

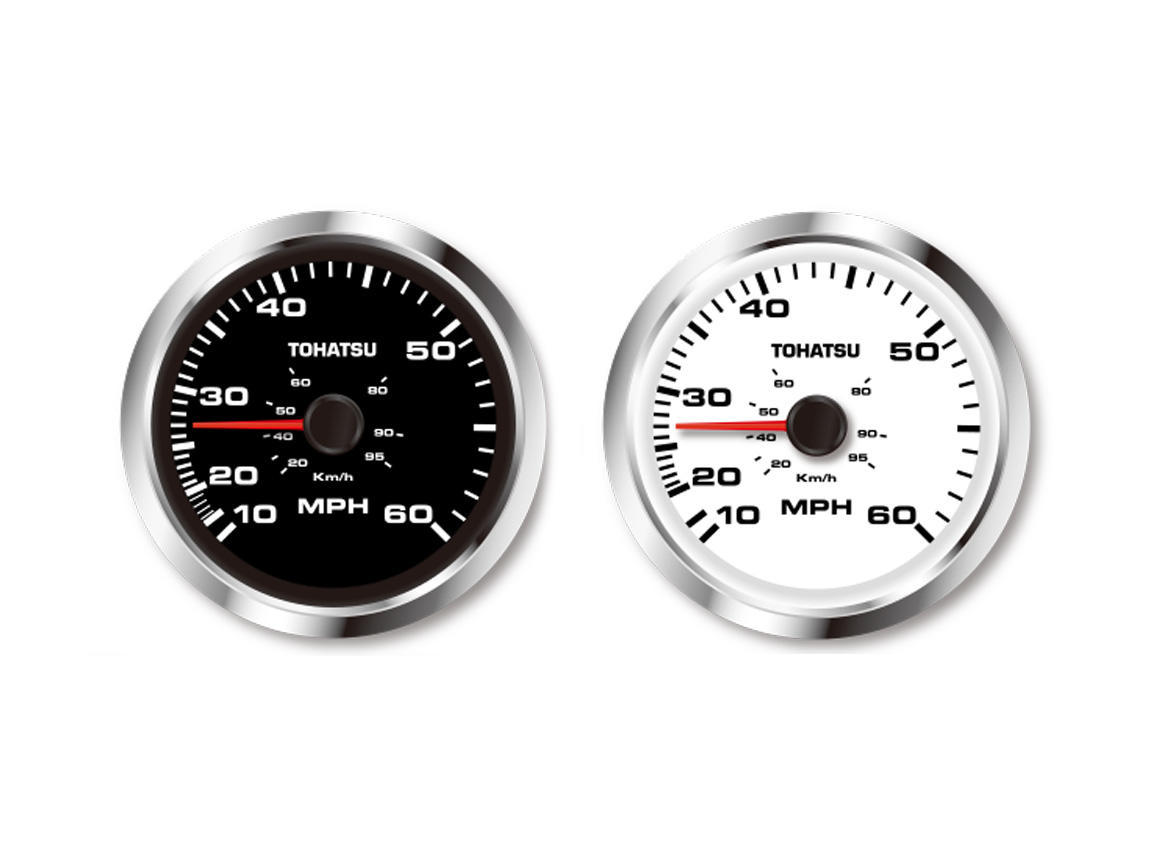

Speedometer - 60mph

Speedometer (4'' diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Description Applicable Models
3GF726720M Speedometer - Black face All Models
3GL726720M Speedometer - White face All Models

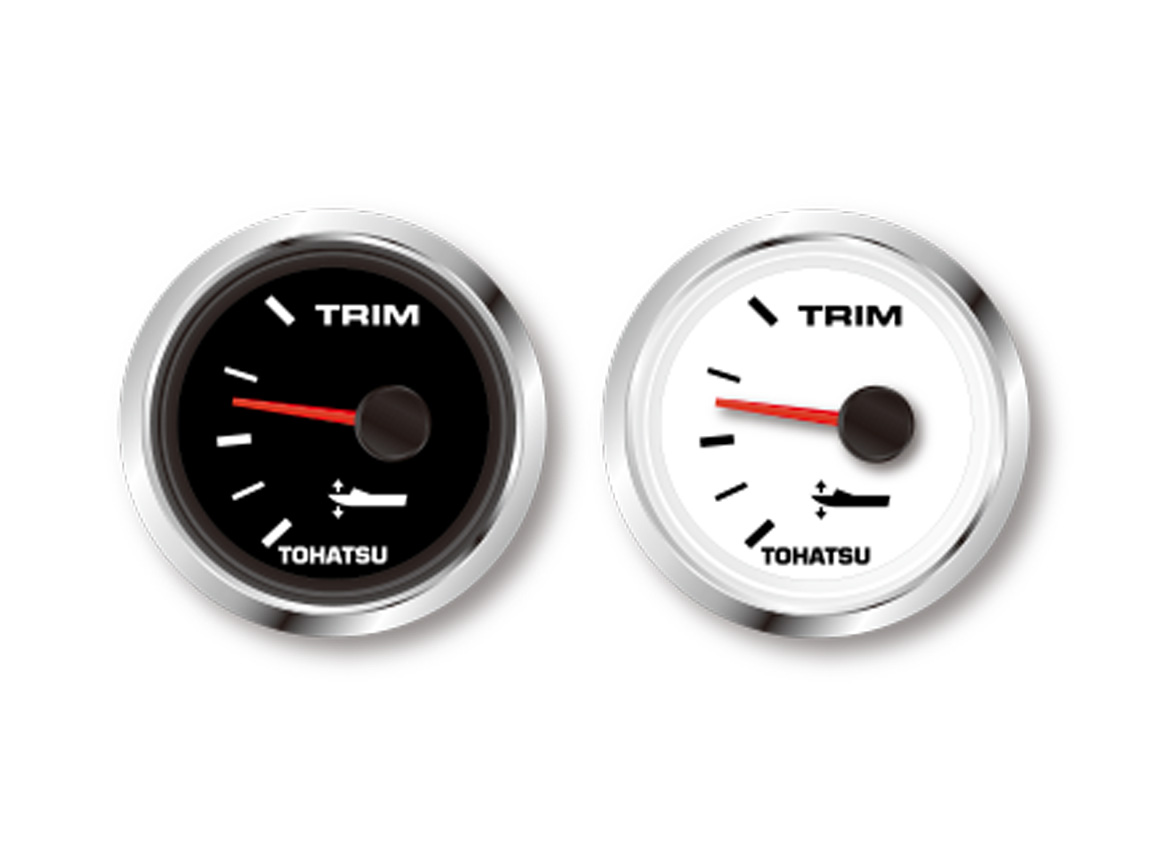

Trim Meter

Trim meter (2" diameter) shows angle of motor for optimum performance and efficiency. Features a domed lens to minimize glare in direct sunlight, a fog & scratch resistant coating and chrome bezel.

Part Number Description Applicable Models
3GF725710M Trim Meter - Black face All Power Tilt models with 2-wire trim sender
3GL725710M Trim Meter - White face All Power Tilt models with 2-wire trim sender
3PV725710M Trim Meter - Black face For all BFT 60hp-250hp Power Tilt models
3PU725710M Trim Meter - White face For all BFT 60hp-250hp Power Tilt models

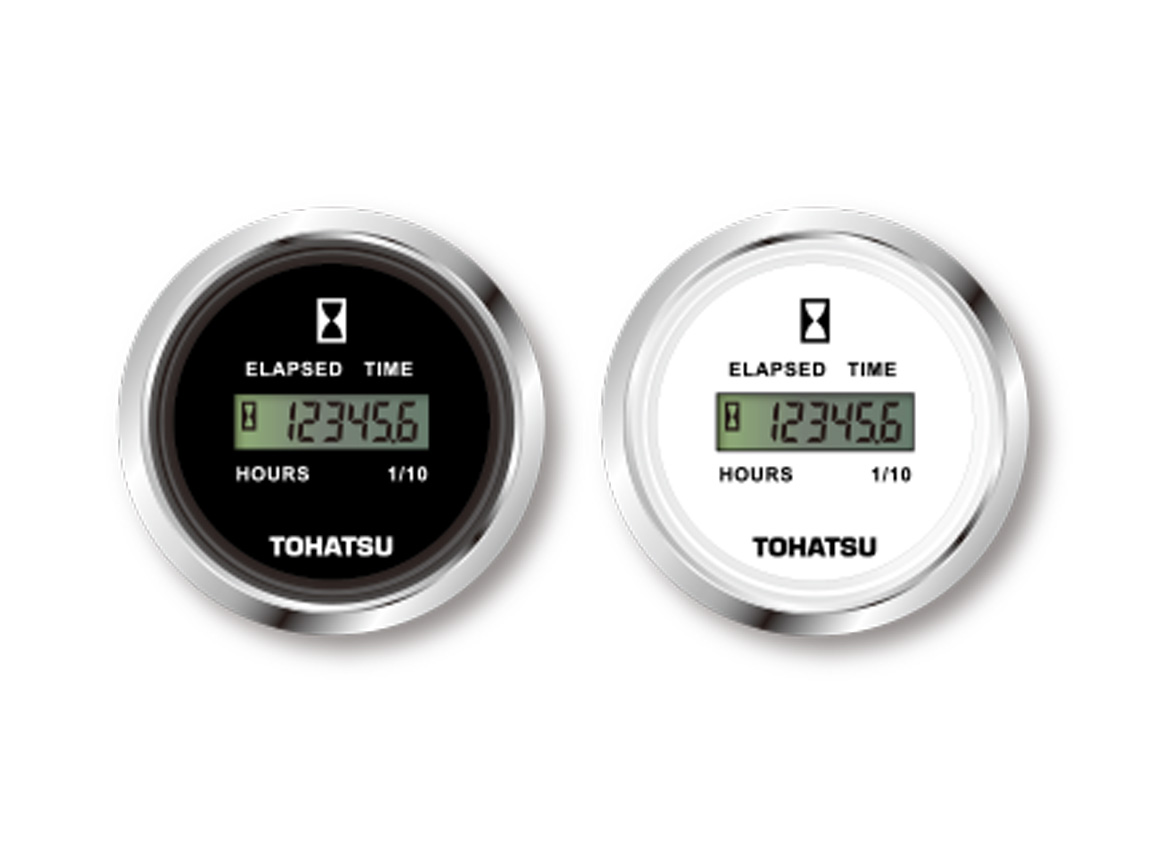

Hour Meter

Digital Hour Meter (2" diameter) keeps track of how many hours on your outboard. Features a domed lens to minimize glare in direct sunlight, a fog & scratch resistant coating and chrome bezel. For in-dash use only.

Part Number Description Applicable Models
3GF725240M Hour Meter - Black face All electric start, remote models (in-dash use only)
3GL725240M Hour Meter - White face All electric start, remote models (in-dash use only)

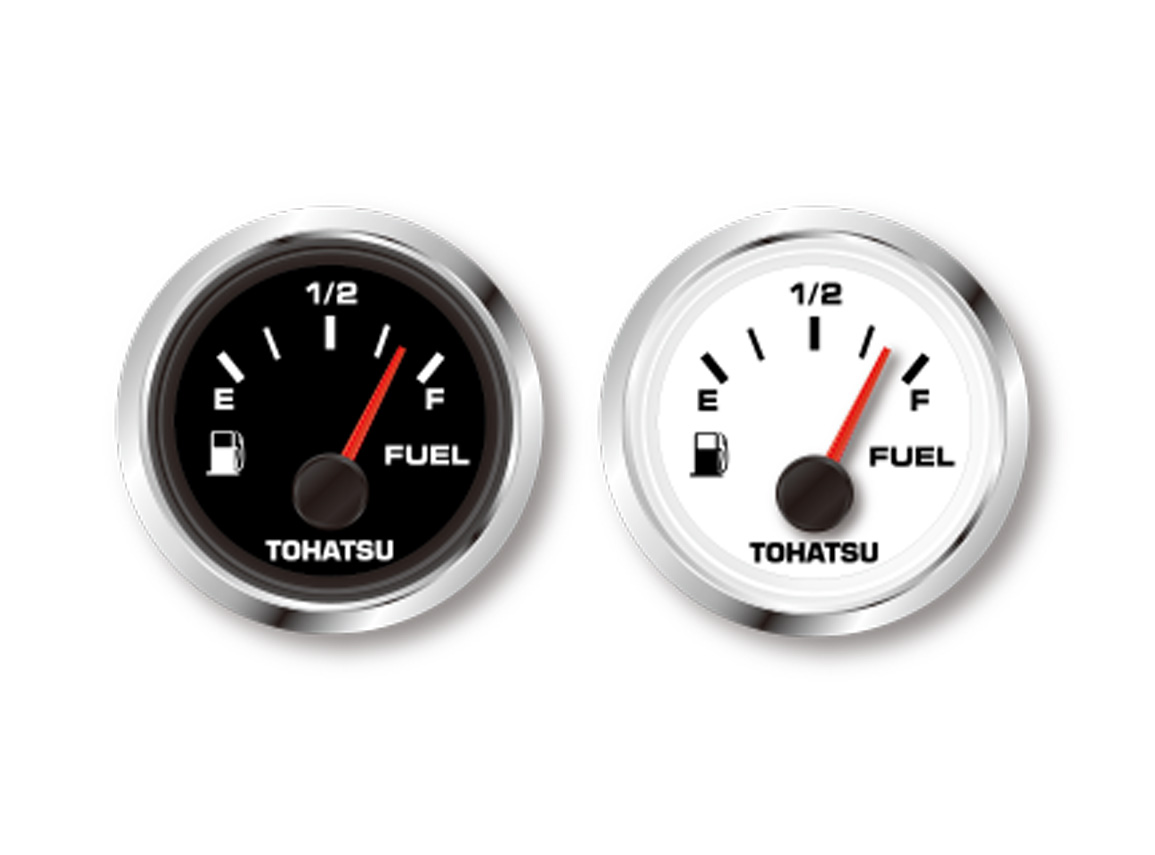

Fuel Gauge

Fuel Gauge (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Description Applicable Models
3GF725960M Fuel Gauge - Black face All models
3GL725960M Fuel Gauge - White face All models

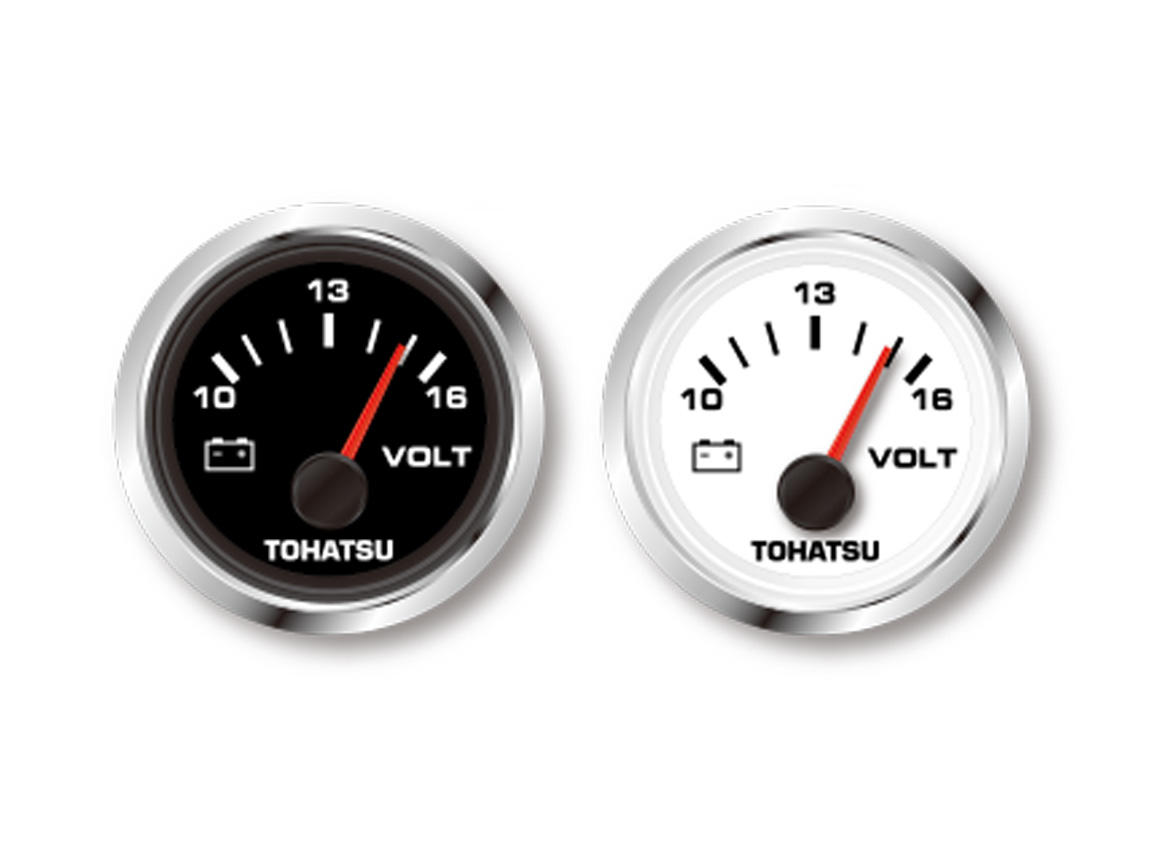

Voltage Meter

Voltage meter (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating.

Part Number Description Applicable Models
3GF725290M Voltage Meter - Black face All models
3GL725290M Voltage Meter - White face All models

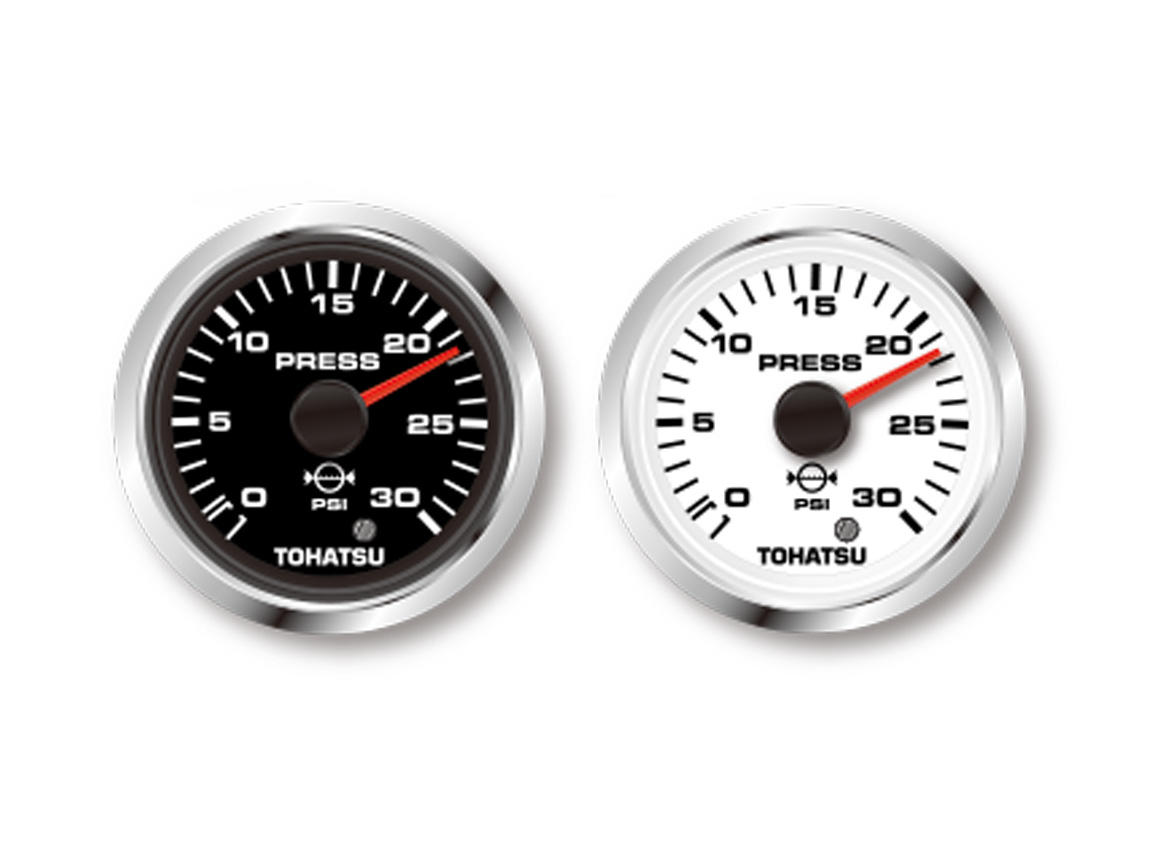

Water Pressure Gauge

Water Pressure gauge (2" diameter) has a chrome bezel and is back-lit for easy viewing at night/dusk. Features a domed lens to minimize glare in direct sunlight and a fog & scratch resistant coating. Includes hose and t-nipple.

Part Number Description Applicable Models
3GF725980M Water Pressure (10psi) Gauge - Black face 25/30/40/50hp MFS 4-Stroke Models
60-90hp BFT 4-Stroke Models
All TLDI Models
3GL725980M Water Pressure (10psi) Gauge - White face 25/30/40/50hp MFS 4-Stroke Models
60-90hp BFT 4-Stroke Models
All TLDI Models
3PV725980M Water Pressure (30psi) Gauge - Black face 115-250hp BFT 4-Stroke Models
3PU725980M Water Pressure (30psi) Gauge - White face 115-250hp BFT 4-Stroke Models
